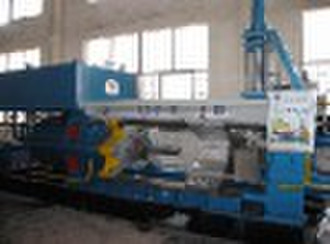

XC-800 aluminium extrusion press

ItemArt and technologyPrepare note1Hydraulic system work pressure 21MPa 2Prepare note Main cylinder807KN Side urn84 KN 3Side urns return force 51KN 4Extruding cylinder lock 58 KN 5Shearing force 28 KN 6Extrusion work into speed 1.2∼12.8mm/s 7The piston fast speed 364mm/s 8The piston retreat quickly speed 282mm/s 9Closed tube extrusion speed 180mm/s 10Container open speed 124mm/s 11Scissors to drop speed 124mm/s 12Scissors speed 180mm/s 13Container size hole innerΦ110 mm Length200∼600mm 14Aluminium billet size range diameterΦ145 mm Length200∼600 mm 15The total power motors ≈180KW 16Extruding tube heating power 1.5KW×15=22.5KW 17Operating mode Manual and automatic two single stroke 18Shape dimension (long * width *high), 7480×2800×3200 19The total weight 35T
