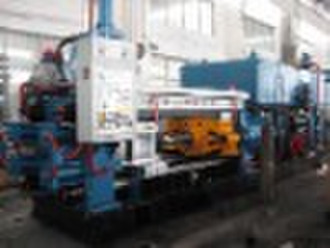

800 ton extruder

ItemArt and technologyPrepare note1Hydraulic system work pressure 21MPa 2Prepare note Main cylinder:807KN Side urn:84 KN 3Side urns return force 51KN 4Extruding cylinder lock 58 KN 5Shearing force 28 KN 6Extrusion work into speed 1.212.8mm/s 7The piston fast speed 364mm/s 8The piston retreat quickly speed 282mm/s 9Closed tube extrusion speed 180mm/s 10Container open speed 124mm/s 11Scissors to drop speed 124mm/s 12Scissors speed 180mm/s 13Container size hole innerΦ110 mm Length200600mm 14Aluminium billet size range diameterΦ145 mm Length200600 mm 15The total power motors ≈180KW 16Extruding tube heating power 1.5KW×15=22.5KW 17Operating mode Manual and automatic two single stroke 18Shape dimension (long * width *high), 7480×2800×3200 19The total weight 35T
